Benefits

Why choose NitraDem Direct Connect 2?

Direct water connection

EN 1717 Category 5-compliant for direct connection. Water available on demand to all connected infection control system.

Three water outlets

Connection of up to three infection control systems simultaneously.

Easy handling

Simple filter replacement. Compatible with DAC Universal D, DAC Universal S and all standard sterilizers.

Continuous control

 Always the right water quality. No quality loss due to storage. Water conductivity is continuously monitored.

Price efficient

NitraDem Connect 2 is not only the easiest but also the cheapest solution compared to other mixed bed systems.

Filters

The new easy-to-replace NitraDem filters function according to the ion-exchange principle. The capacity of the NitraDem filters varies according to the hardness/softness of the tap water. The softer the tap water, the larger the capacity of the NitraDem filter.

Technical Details

The capacity of the NitraDem filters varies according to the hardness / softness of the tap water. The softer the tap water, the larger the capacity of the NitraDem filter.

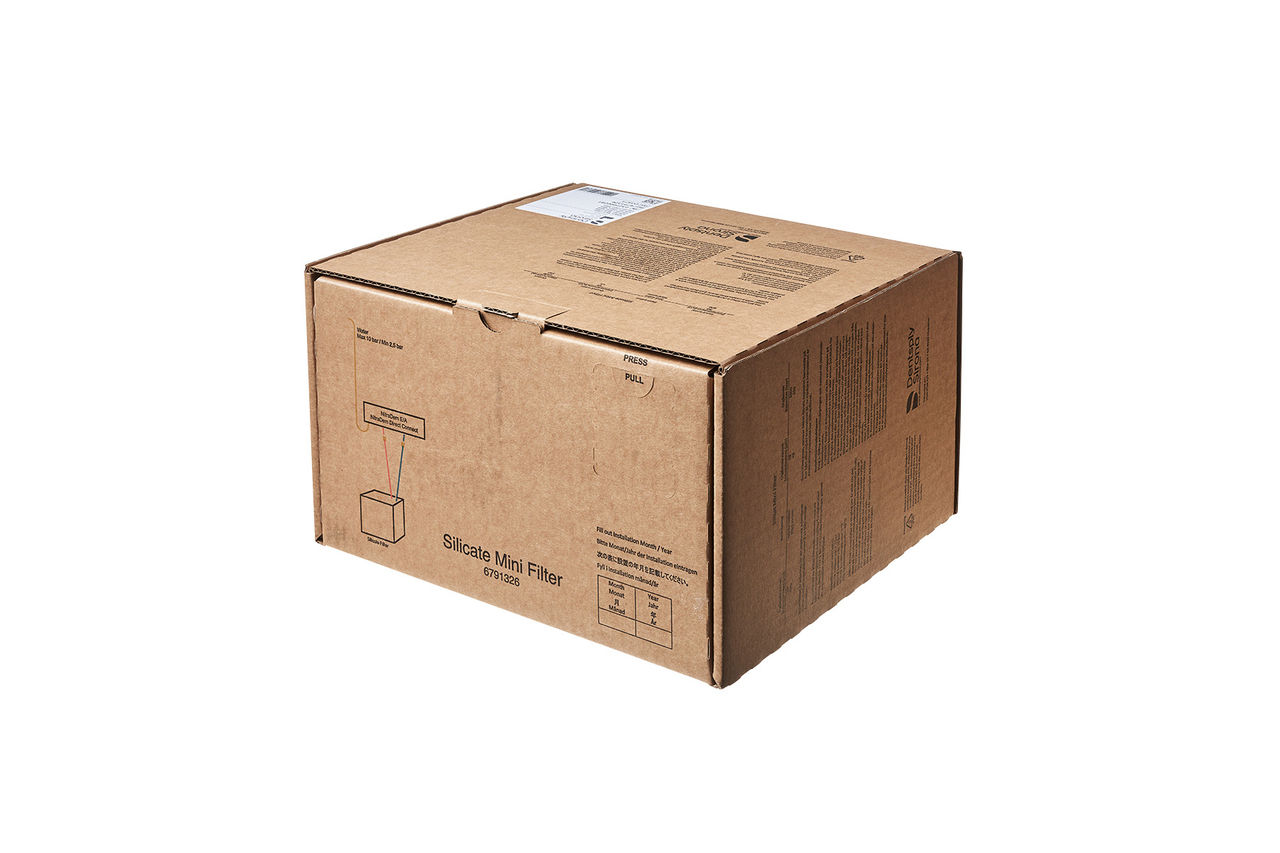

NitraDem Mini Filter

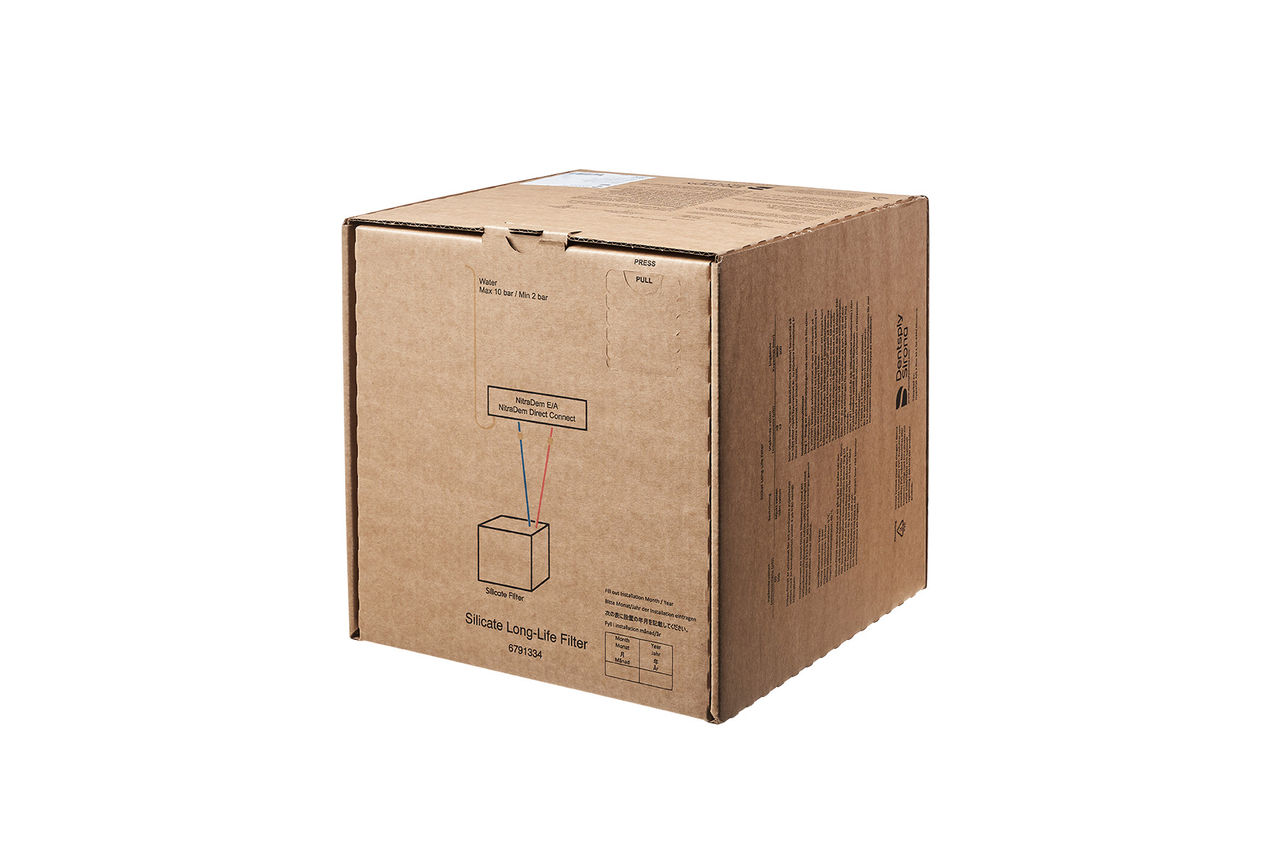

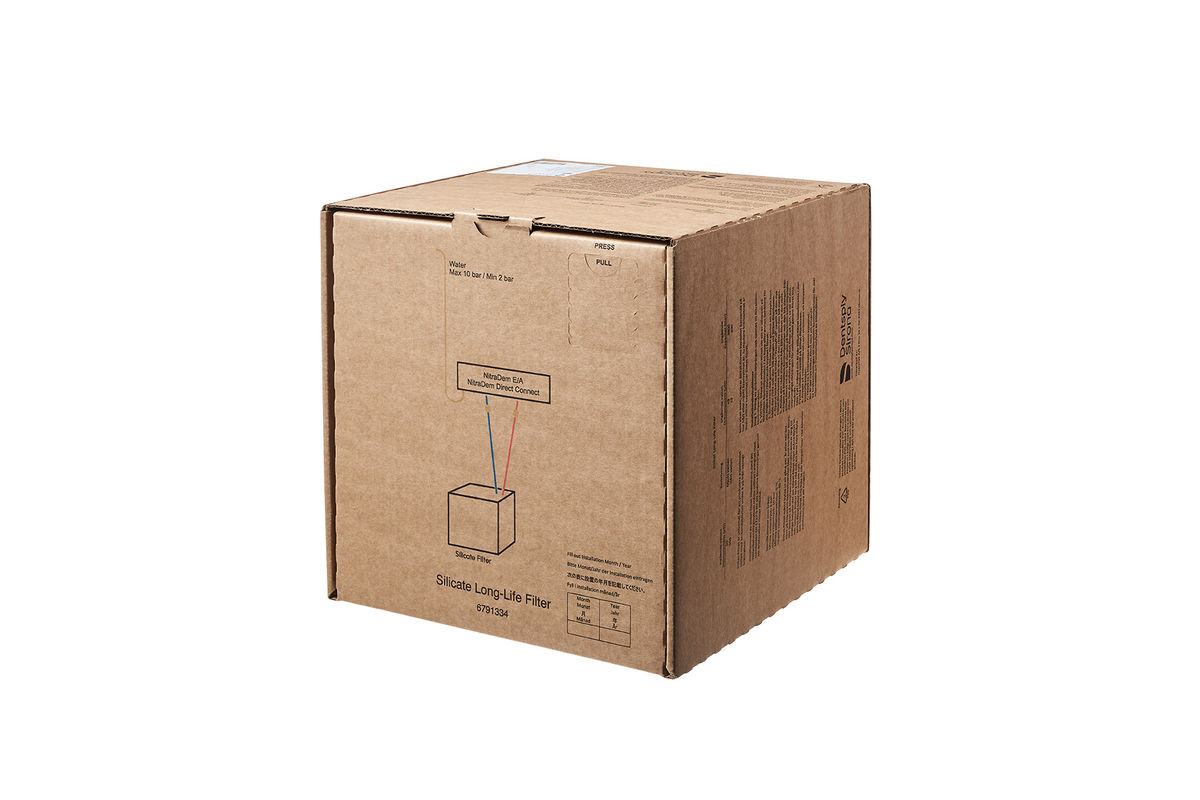

NitraDem Long-Life Filter

REF

66 93 209

66 93 217

Dimensions in cm (H x W x D)


26.7 x 25.9 x 14.0

27.6 x 27.9 x 26.8

Weight


3.9 kg

6.75 kg

Capacity at 50 μS/cm inlet water purity


2,500 liters

5,000 liters

Capacity at 500 μS/cm inlet water purity

180 liters

360 liters

With the new generation NitraDem filters the NitraDem Direct Connect 2 is not only the easiest solution, but also the cheapest solution compared to other mixed bed systems.



Price per cycle* (0.7 liters/cycle)



NitraDem Mini Filter

NitraDem Long-Life Filter

Outlet limit purity

3 μS/cm



Inlet water 50 μS/cm

€ 0.03

€ 0.03

Inlet water 500 μS/cm

€ 0.45

€ 0.36

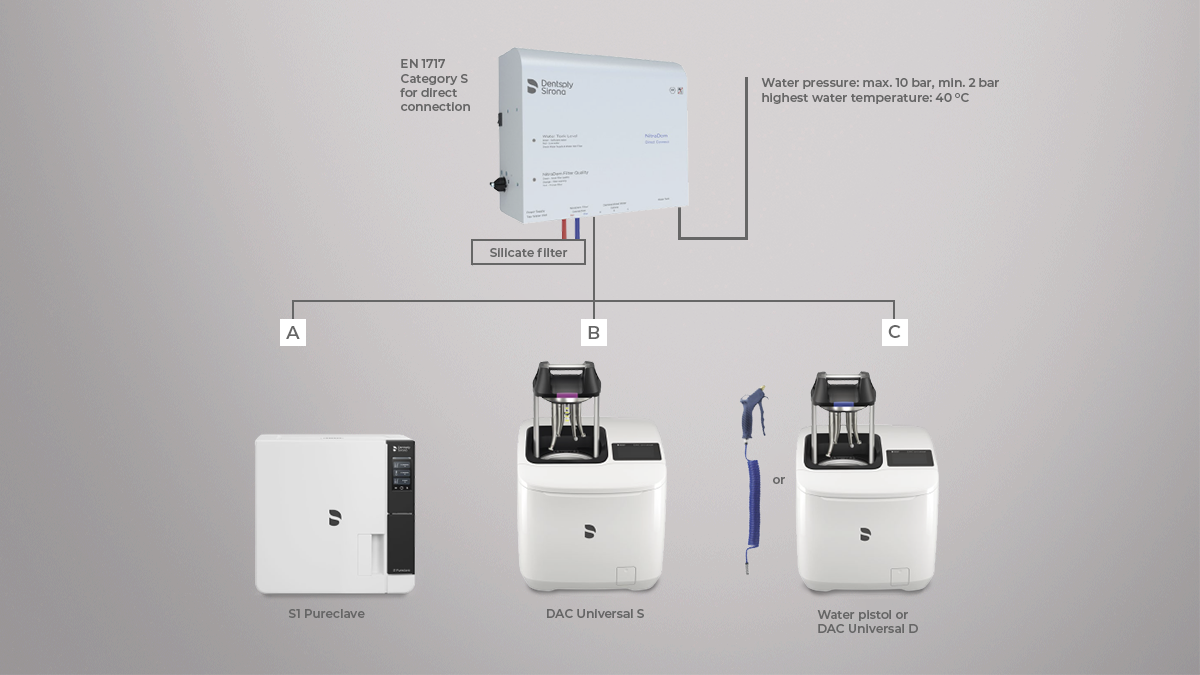

System setup

NitraDem Direct Connect 2 has three water outlets, from which demineralized water is available at a pressure of 5-6 bar. At outlet A an infection control system can be optionally connected with or without a water suction pump. The system is not recommended for connection to cleaning and disinfection devices. Water outlets B and C are used to connect infection control systems without a water suction pump, e.g. water pistol, DAC Universal S.
