Primeprint

Indications & Materials

A wide range of applications with intelligent material management

Primeprint comes with validated materials and RFID-supported, automated material management. The Primeprint material concept offers user-friendly support with its color-coded material cartridge system. Each print material type is associated with a different color, which is mirrored in the inLab CAM Software for quick orientation, for correct material selection, and easily identifiable storage. Once the cartridge is inserted into its Material Unit, the inLab CAM Software automatically pairs and identifies them as a unit. Thanks to the RFID tags, the software monitors the fill level of each Material Unit to indicate when a replacement is required.

LEARN MORE

Materials

Please visit the Download Center for IFUs.

Primeprint Splint

Application:

Hard splints

Characteristics:

  • Minimum wall thickness: 1.5 mm
  • High mechanical flextural strength and stability
  • High initial final hardness
  • Biocompatible
  • Low flexibility & high hardness

Primeprint Splint SF

Application:

Flexible splints, repositioners, mouthguards, nightguards

Characteristics:

  • Minimum wall thickness: 1 mm
  • Flexible and fracture-resistant
  • High, tension-free wearing comfort
  • Easy to polish
  • MMA-, THF-MA- and TPO-free, tasteless
  • Biocompatible
  • Compatible with Material Unit Type S
  • High flexibility & low hardness
  • usable for retainers

Primeprint Splint ST

Application:

Flexible splints, repositioners, mouthguards, nightguards

Characteristics:

  • Minimum wall thickness: 0.8 mm
  • Flexible and fracture-resistant
  • High, tension-free wearing comfort
  • Easy to polish
  • MMA-, THF-MA- and TPO-free, tasteless
  • Biocompatible
  • Compatible with Material Unit Type S
  • Medium flexibility & medium hardness
  • usable for retainers

Primeprint Gingiva

Application:

Gingiva mask

Characteristics:

  • Permanently soft and flexible
  • Excellent combinable with working models made of Primeprint Model

Primeprint Model C

Application:

Situation, working models and thermoforming models

Characteristics:

  • Combines usability for thermoforming, working and situation models in one cartridge
  • Model manufacturing in <1 hour: Enables the fastest manufacturing processes for models amongst the different model materials for Primeprint
  • High temperature resistance
  • Bisphenol A-, MMA-, THF-MA and TPO-free

Primeprint Model

Application:

Working models, situation models, control models

Characteristics:

  • High detail reproduction
  • High surface hardness and dimensional stability
  • Plaster-like appearance and haptic
  • Very good construction precision

Primeprint Model T

Application:

Thermoforming models

Characteristics:

  • High temperature resistance to process-related temperature stress
  • High edge strength

Primeprint Guide

Application:

Surgical guide

Characteristics:

  • Very high mechanical stability and construction precision
  • High printing speed
  • Sterilizable
  • Biocompatible

Primeprint Tray

Application:

Individual impression trays

Characteristics:

  • High dimensional stability, torsional rigidity
  • High construction speed
  • Compatible with all impression materials
  • Biocompatible

Primeprint Temp

Application:

Temporary anterior and posterior tooth restorations

Characteristics:

  • Natural transparency and tooth esthetics
  • Extremely high construction precision
  • High mechanical stability
  • Biocompatible

Primeprint Cast

Application:

Dental casting objects for precision casting

Characteristics:

  • Residue-free burning out
  • High dimensional stability after printing
  • Precise and distortion-free results, even for delicate constructions

Lucitone Digital Print

Application:

3D denture base

Characteristics:

  • High impact denture base material
  • Ensuring optimal fit, function and comfort
  • 4 gingiva shades

Lucitone Digital IPN

Application:

3D premium tooth

Characteristics:

  • Premium denture tooth
  • Excellent wear resistance
  • Highly esthetic
  • 8 tooth shades

Lucitone Digital Value

Application:

  • 3D Economy Tooth & Trial Placement

Characteristics:

  • Multi-purpose resin: economy denture teeth, temporary dentures, try-in device
  • Available in shades A1, A2, A3, B1, B2, BL3

Material Units

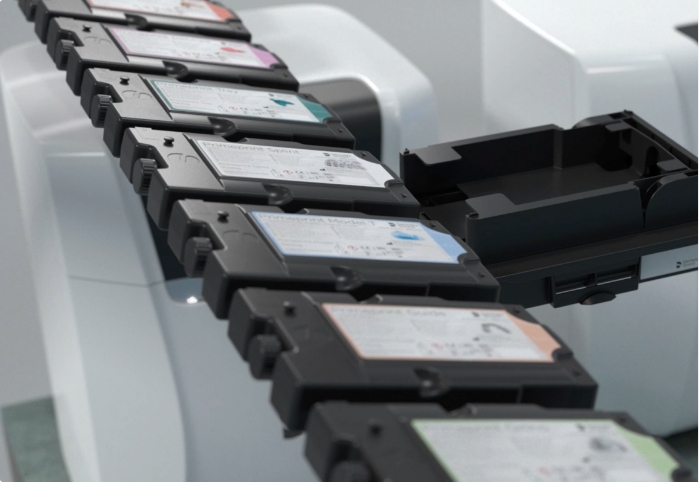

Primeprint’s material concept includes a Material Unit for holding the material cartridges – one cartridge for each application. The Primeprint Material Unit consists of the vat and the insertion slot for the material cartridge. The cartridge clicks into the Material Unit with a hand movement. Both the vat and the material cartridge are fitted with RFID tags. Once assembled, the software automatically pairs them and identifies them as a unit.

The Primeprint Material Unit and Material Unit Type S consist of the vat and the insertion slot for the material cartridge. Material Unit Type S enables transparent printing results and is used for printing of Primeprint Splint ST and Primeprint Splint SF. The cartridge clicks into both types of Material Units with a hand movement.

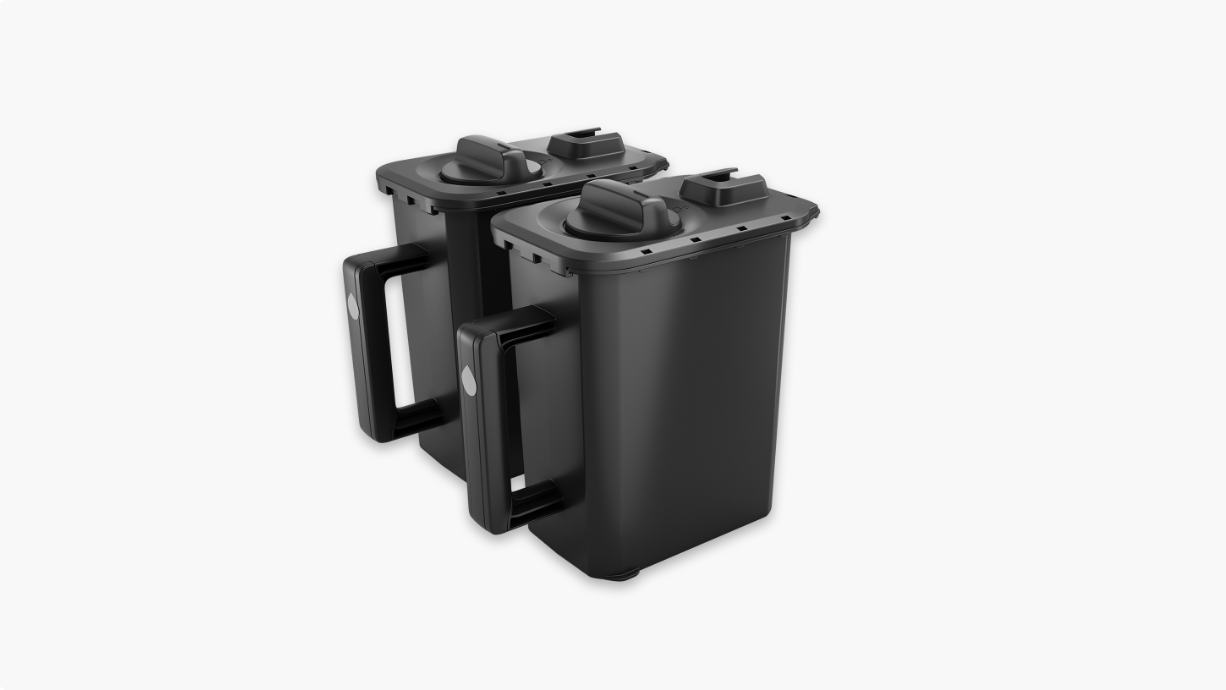

Washing Containers

The consecutive pre- and final washing cycles in Primeprint PPU use cleaning agent in the two integrated washing containers to remove liquid resin residues from the printed objects. Each material has two washing containers assigned to avoid cross-contamination. The inLab CAM Software automatically tracks the washing cycles of each container via the RFID tags, monitors the lifetime of the cleaning agent, and automatically alerts the user in case a cleaning agent must be exchanged.

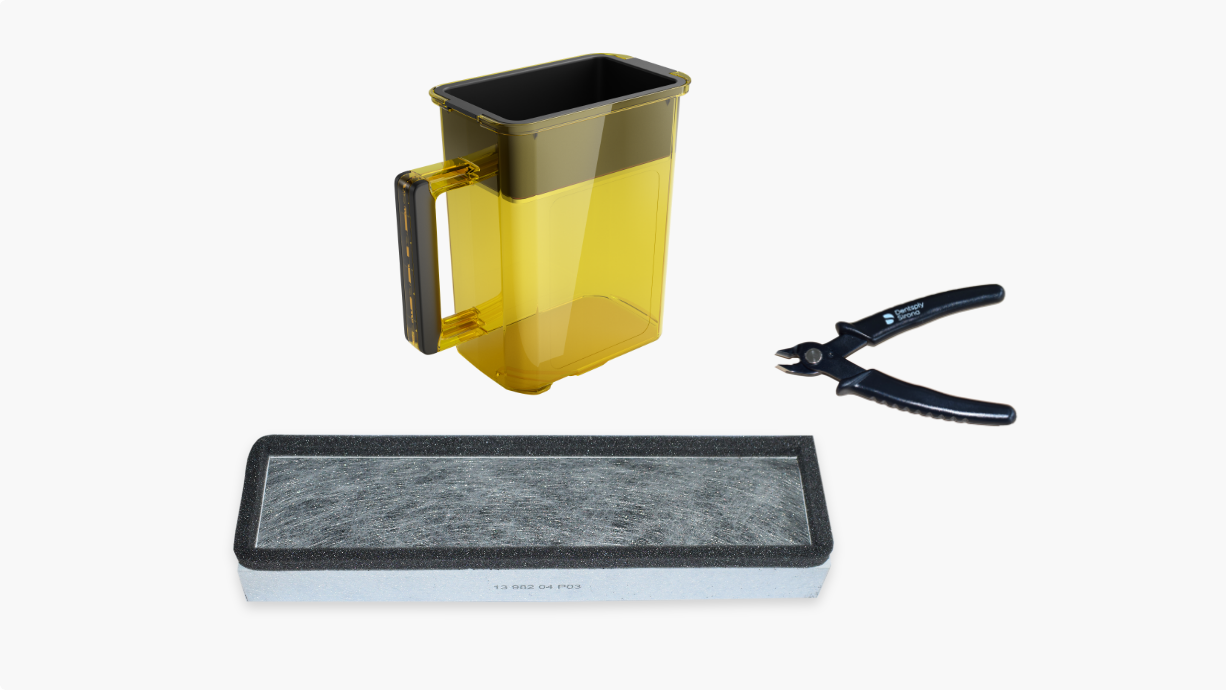

Accessories for Primeprint and Primeprint PPU

In addition to materials, there are various accessories available for Primeprint Solution. From Primeprint Box to activated carbon and ozone filters, users can order additional hardware items or replacements for both Primeprint and Primeprint PPU.

Download order form

Better, safer and biocompatible results with post-curing under nitrogen atmosphere compared to post processing without nitrogen

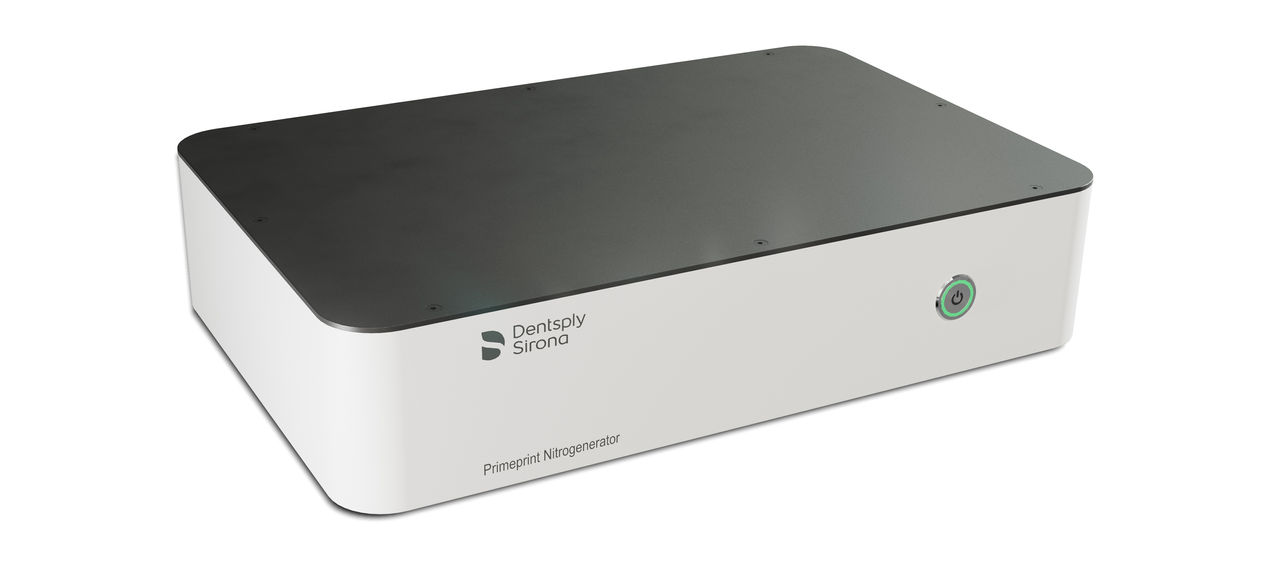

The quality of the final appliance depends, among other factors, on the post process. Several independent studies underline that nitrogen in the post curing enhances the mechanical surface properties of the final print result.1 Primeprint Solution enables this condition in the Primeprint PPU by flooding the light curing chamber automatically with nitrogen. All in all, the interplay between the material, the devices and the quality of the post process matters to achieve high quality, biocompatible printing results. Thereby, the users have the possibility to choose between external nitrogen tanks and the Primeprint Nitrogenerator.

Primeprint Workflows

Learn more

Software Downloads

View all

Contact us

Find out more about the Primeprint Solution from Dentsply Sirona.

Contact Us

1. Wada et al. (2022): Effect of Nitrogen Gas Post-Curing and Printer Type on the Mechanical Properties of 3D-Printed Hard Occlusal Splint Material - PubMed. Data on file: contact@dentsplysirona.com
