Thanks to its various installation and operation options, the Heliodent Plus can be easily adapted to fit every X-ray situation, regardless of a room's dimensions or layout, we provide options to support each unique workflow.
|Power supply||Direct Current (DC)|
|Line voltage||120 - 240 V|
(acc. IEC 336)
|Tube voltage||60-70 kV|
|Tube current||7 mA|
|Exposure time|| 0.01 - 3.2 s, incrementally adjustable|

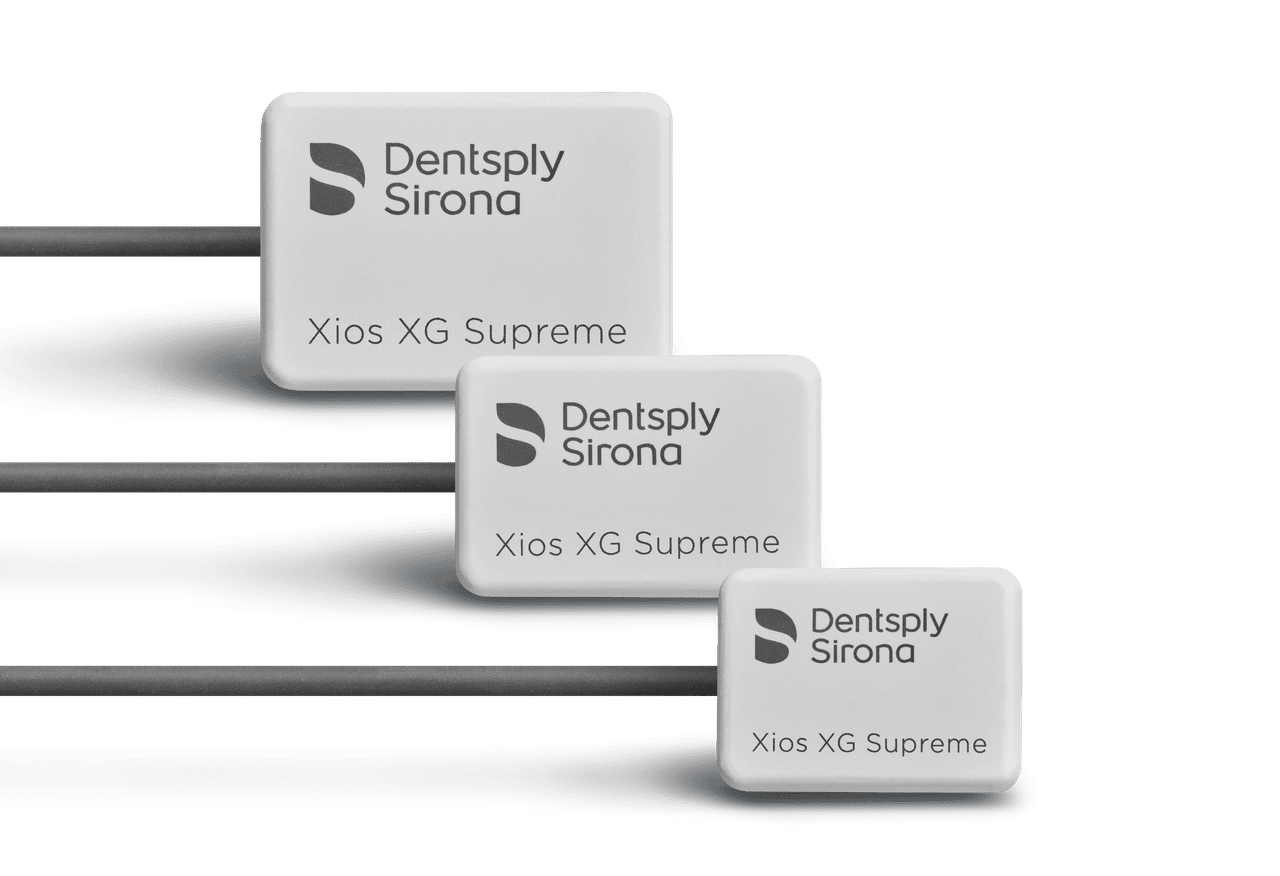

|Detector media||Freely selectable among film, phosphor plate and digital sensor|
|Arm length||Medium: 41 cm / 16.2" ; Long: 70 cm/ 27.5" ; Extra Long: 95 cm / 37.4"|

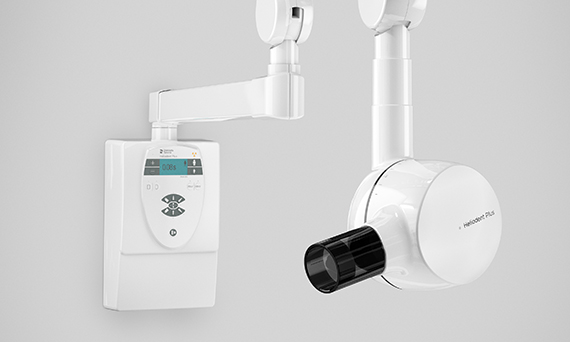

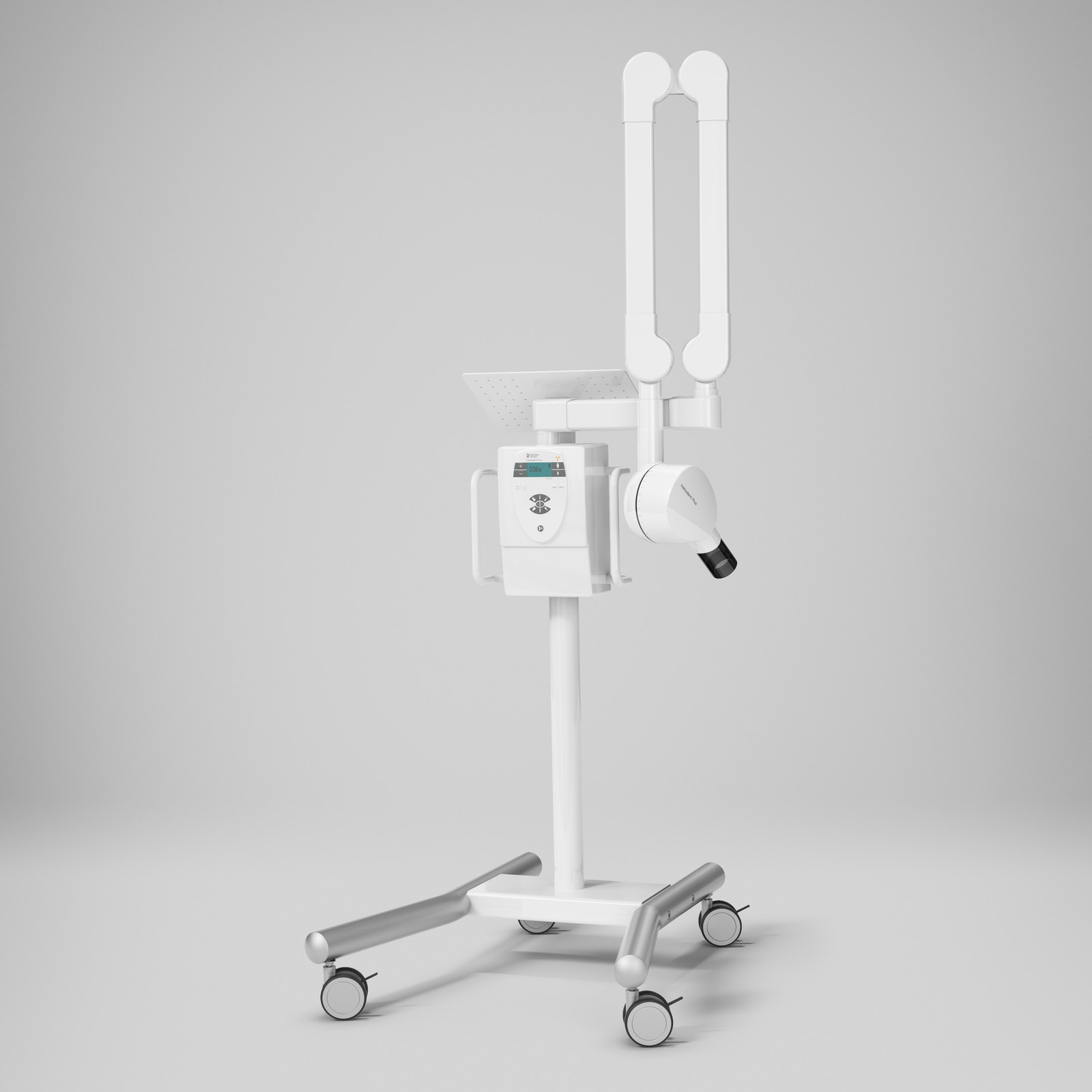

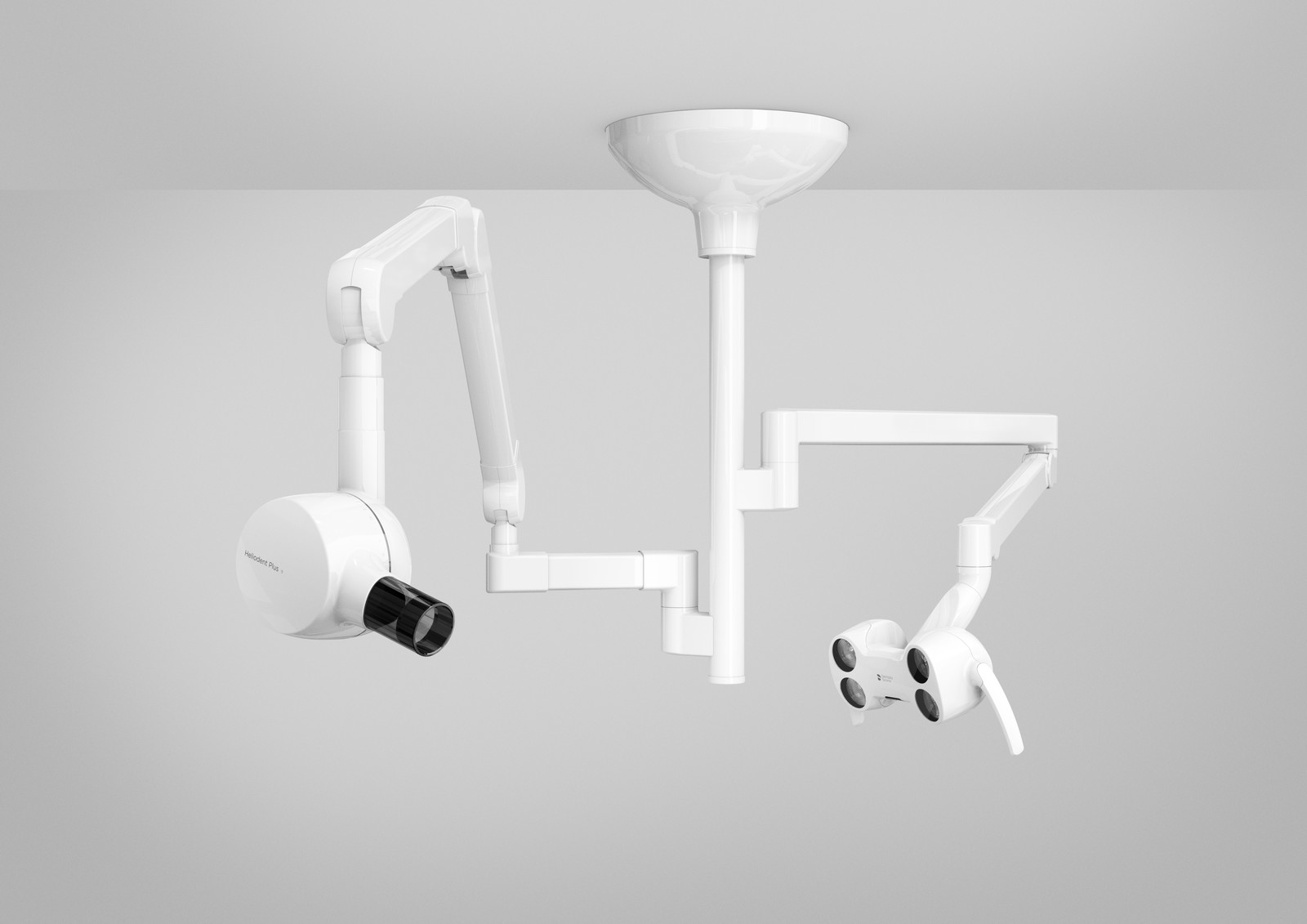

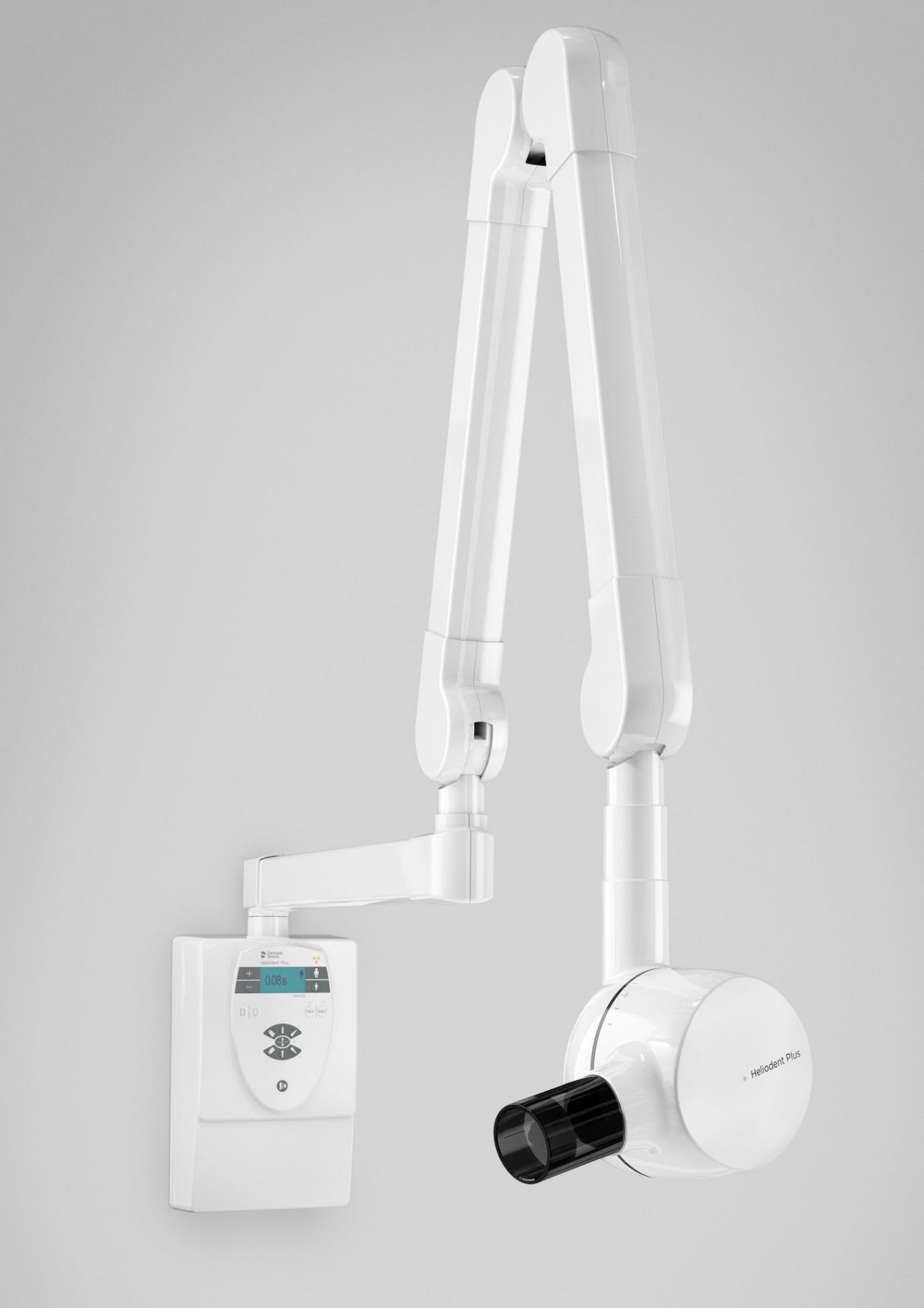

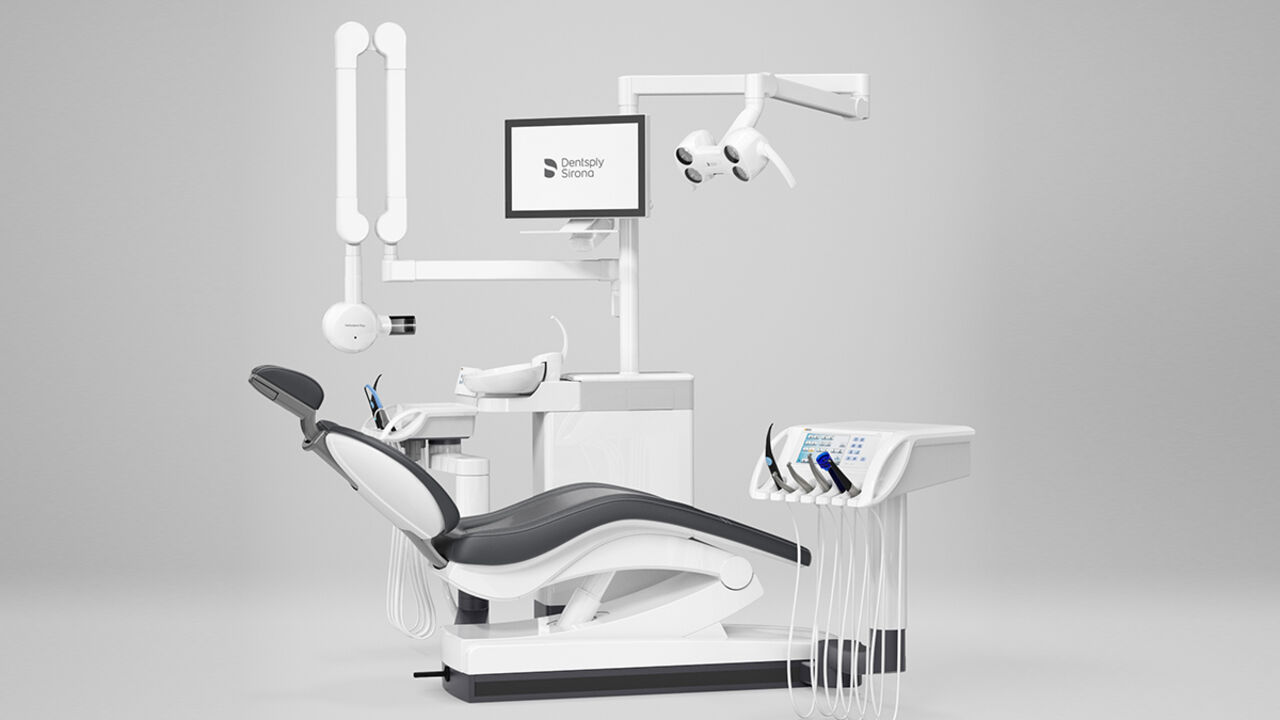

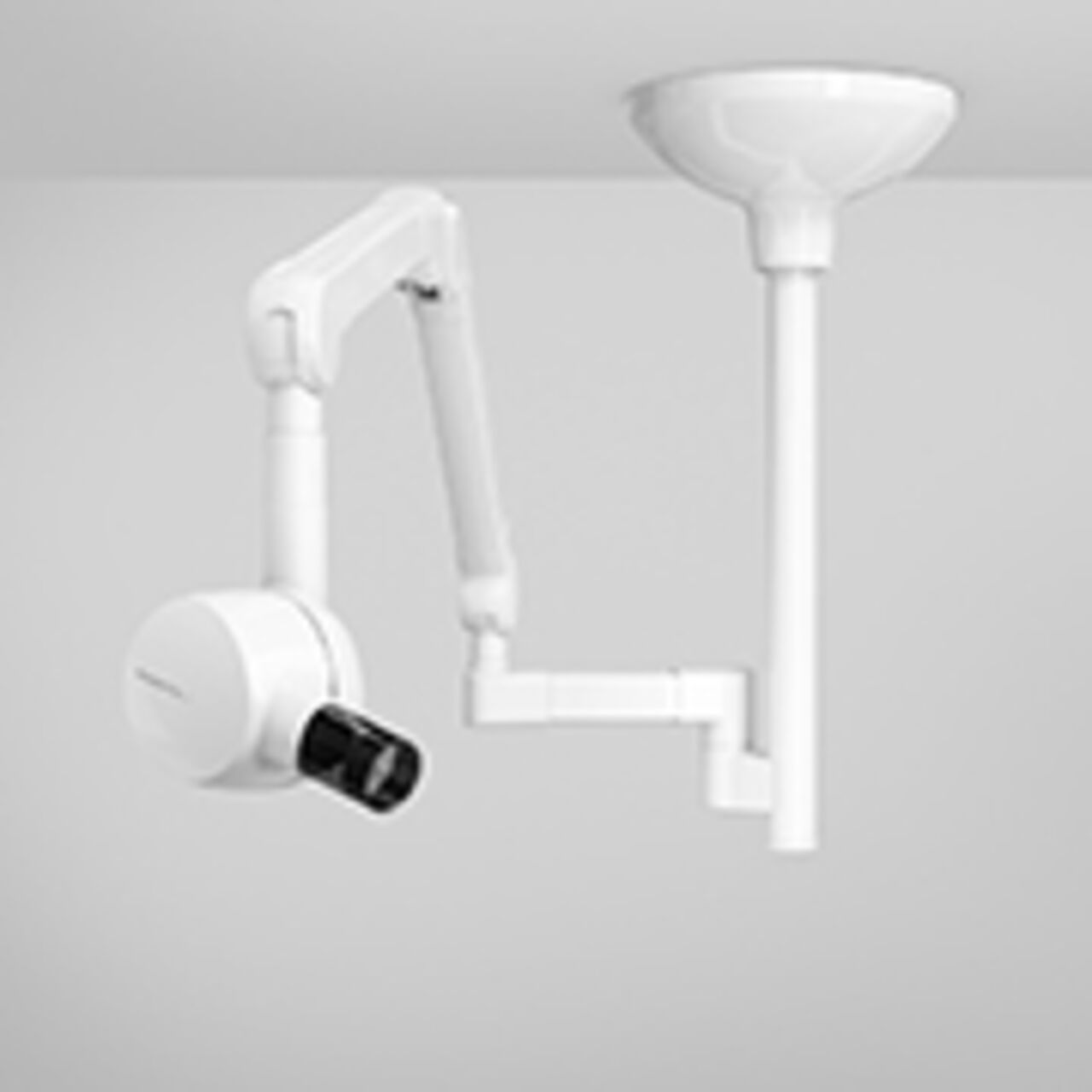

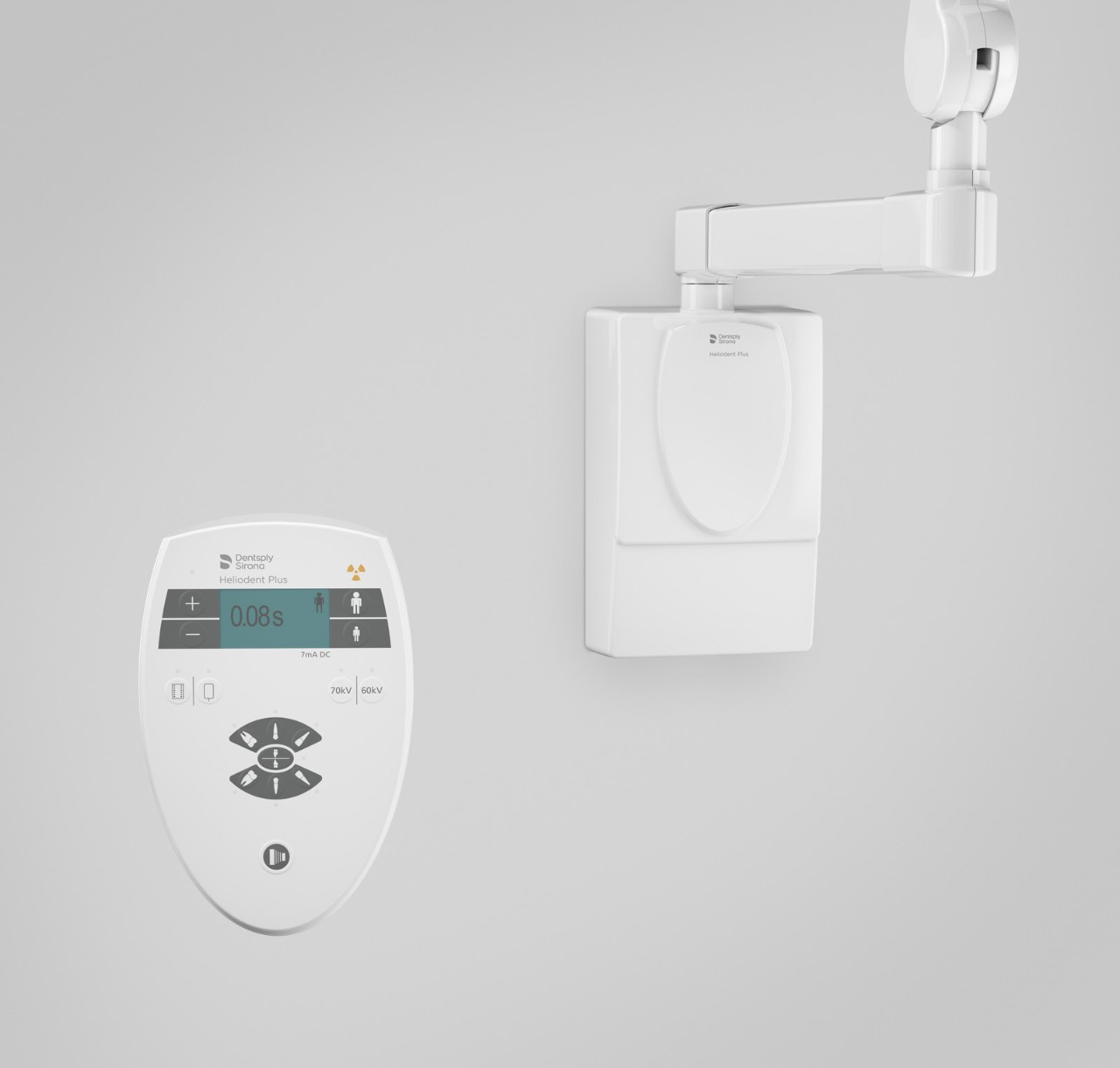

|Installation option||Wall-mounted, ceiling-suspended, on a mobile cart or on a Dentsply Sirona Treatment Center|

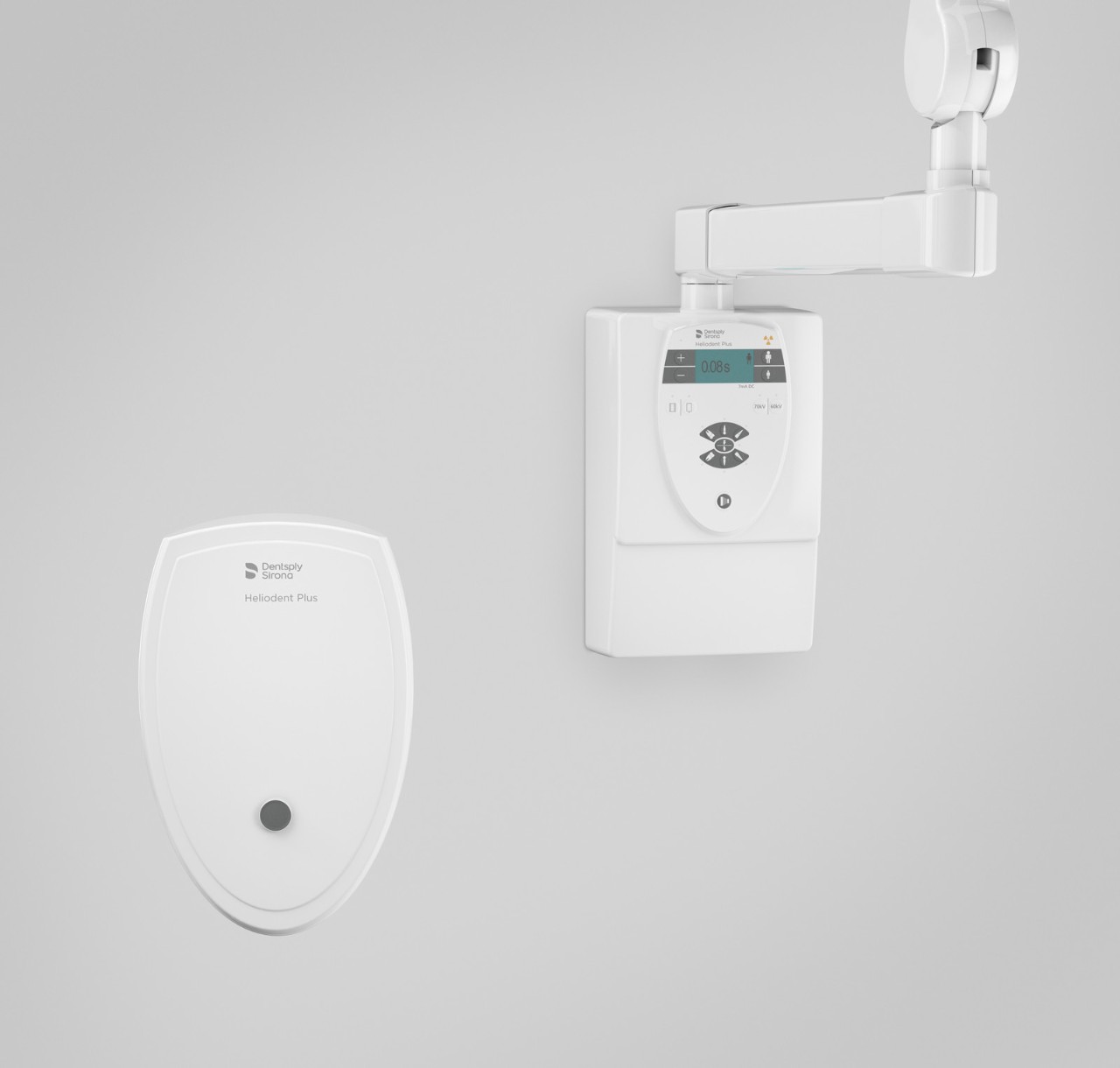

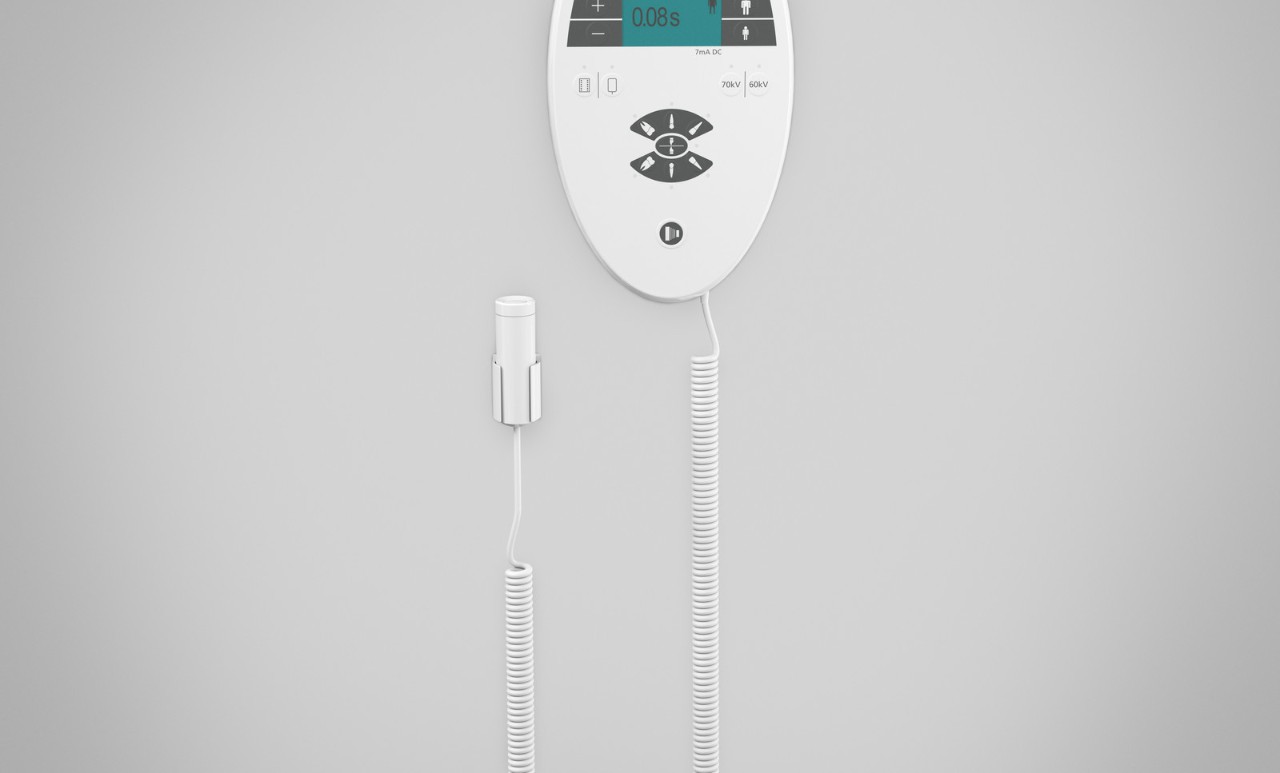

No, you can use Heliodent Plus with film, phosphor plates, or digital intraoral sensors thanks to a small focal spot and easily adjustable exposure time. Our systems are ideal for all receptor mediums. The preset options on the control panel (film/sensor) can be adjusted by a technician to best suit the user's medium. In this case, phosphor plates should be considered film.
