The ultimate ProTaper
Each root canal is unique. That’s why the ProTaper Ultimate treatment solution is designed to support your passion to take on a wide range of canal anatomies. The 5th generation of ProTaper was thought through as a complete workflow and offers a full sequence from narrow canals (F1) to wider ones (FXL).

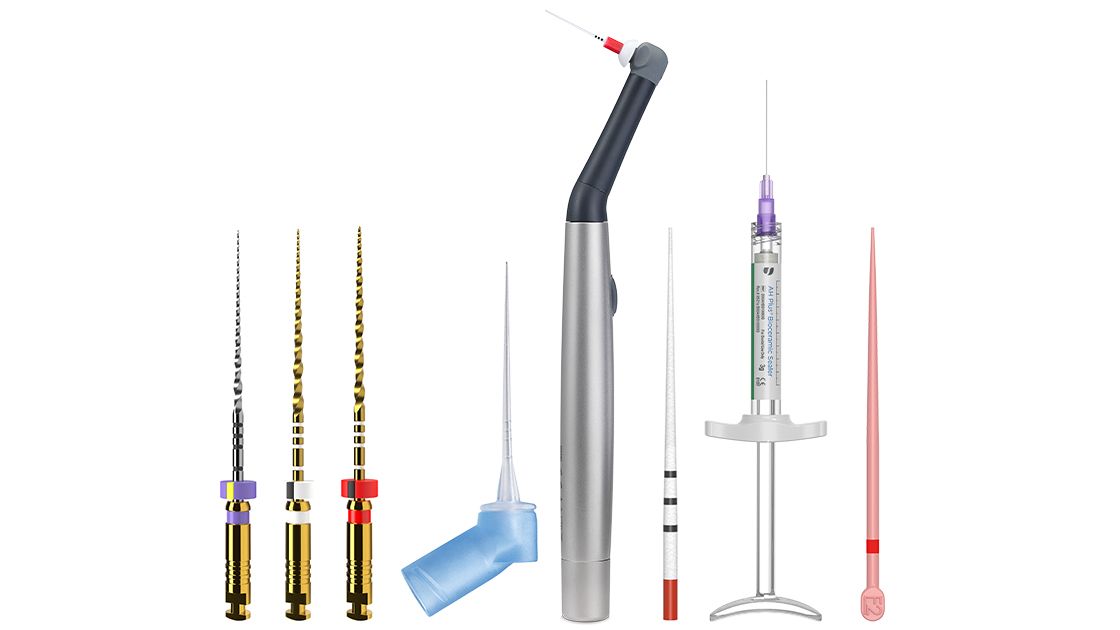

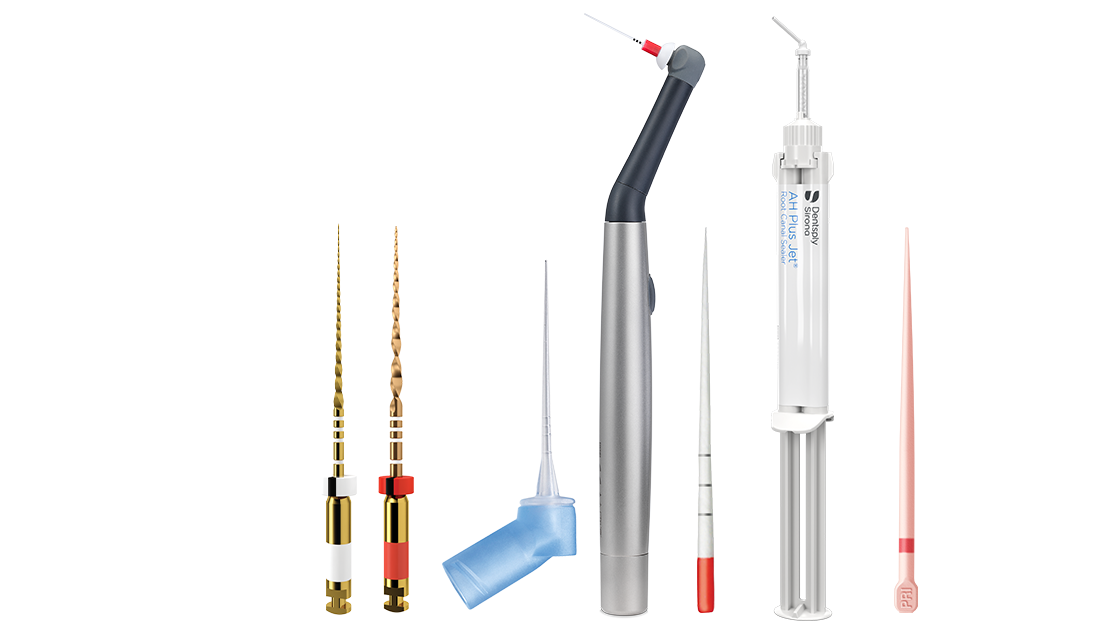

A solution combining the latest generation of ProTaper files, enhanced disinfection with the Dentsply Sirona Irrigation Needle and the SmartLite Pro EndoActivator®, and dedicated obturation with ProTaper Ultimate Conform-Fit® gutta-percha and AH Plus® for a reliable seal, to enable you to successfully treat a full range of anatomical cases, from the easiest to some of the most challenging ones.1
Why choose ProTaper Ultimate?
Take on a wide range of root canal anatomies

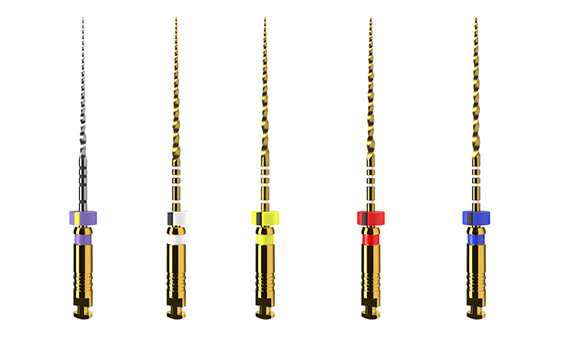

Intuitive and progressive endodontic file sequence
How to
Step 1:
Review different horizontally angulated radiographs to diagnostically determine the width, length, and curvature of any given root and its canal(s).
Step 2:
Prepare an access that enables the easy identification of each canal orifice.
Step 3:
The auxiliary shaping file, SX, may be used when there is restrictive space, to pre-enlarge the body of a canal, or to relocate the coronal-most aspect of a canal away from an external root concavity.
Step 4:
The auxiliary shaping file, SX, may be used when there is restrictive space, to pre-enlarge the body of a canal, or to relocate the coronal-most aspect of a canal away from an external root concavity.
Step 5:
If the Slider doesn’t easily reach the canal terminus, select a small-sized manual Stainless Steel (SST) hand file. In the presence of lubricant catheterize the canal, establish working length, confirm patency, and verify the Slidepath. Now, repeat step #4 above.
Step 6:

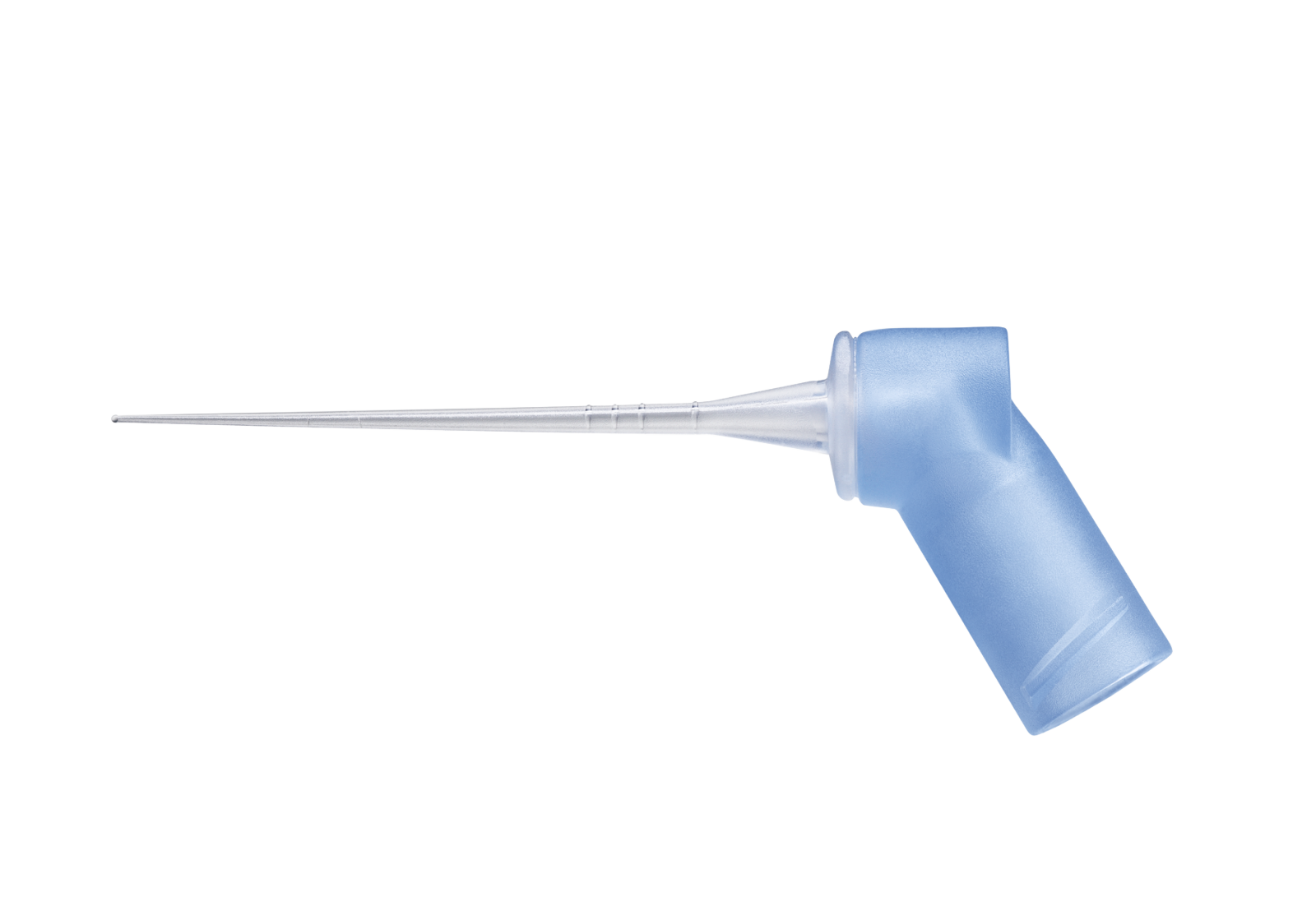

Insert gently the irrigation needle at the canal orifice, start irrigating at the coronal entry. Bring the needle down into the canal while irrigating abundantly until the coronal 2/3 of the canal is reached. Irrigate in the canal with a continuous 2-3 mm back and forth movement. Irrigate with 1 to 2 ml of solution after each pass of instruments.
Step 7:
In the presence of NaOCl, select the Shaper and advance along the Slidepath, in one or more passes, until the WL is reached.
Step 8:
Upon removing the Shaper, irrigate as previously advocated in step #6, EndoActivate to break up debris and move it into solution, then re-irrigate to liberate this debris.
Step 9:
Reconfirm WL, especially in curved canals.
Step 10:
Select the FINISHER F1 (020.007v) and passively follow the canal to the WL, in one or more passes. Remove and inspect its apical flutes. When loaded with dentinal debris, the preparation is finished.
Step 11:
If the FINISHER F1 is loose at length and its apical flutes are not loaded with debris, select the FINISHER F2 (025.008v) and use it in the same manner as described step #10 above.
Step 12:
If the FINISHER F2 is loose at length and its apical flutes are not loaded with debris, select the FINISHER F3 (030.009v) and use it in the same manner as described step #10 above.
Step 13:
Upon removing any given file, clean and inspect its cutting flutes, irrigate as previously advocated in step #6, recapitulate with either a size 10 file or EndoActivator to break up debris, then re-irrigate.
Step 14:
Inspect the file’s cutting flutes upon removal for the presence of unwinding, straightening or stretching. If deformation is noted, discard and use a new ProTaper Ultimate file.
Step 15:
The preparation is finished when the apical extent of any Finisher is loaded with debris, and the corresponding Gutta-Percha Point fits at the WL.
Step 16:

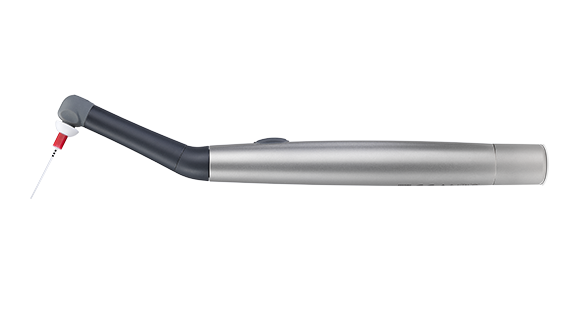

Once the preparation is finished, proceed with 3-D disinfection protocols with EndoActivator or SmartLite Pro EndoActivator.
Step 17:
Select dedicated ProTaper Ultimate Absorbent points (corresponding to color code and size of the last instrument used during canal preparation) to dry the root canals.
Step 18:

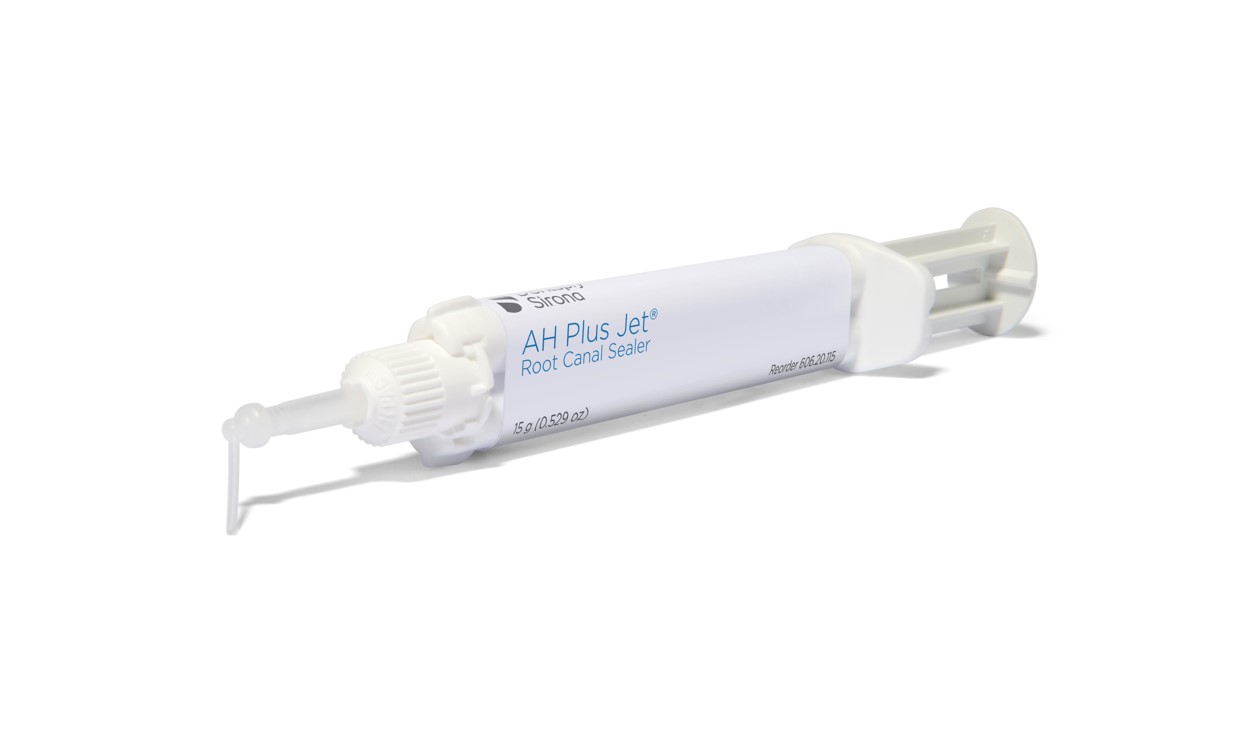

For AH Plus Jet® (master cone technique): - The sealer can be applied directly into the root canal or extruded conventionally on a mixing pad. - Select a gutta-percha point (or alternatively a paper point) of the size of the last instrument used during apical preparation. - Wet the canal walls with the sealer through a pumping movement of the point. - Dip disinfected and dry master point into the material and insert it into the canal with a slow pumping motion. (See webpage for instructions for use: www.dentsplysirona.com/IFU).
Step 19:
Insert a dedicated ProTaper Ultimate Conform Fit Gutta-Percha Point (corresponding to color code and size of the last instrument used during canal preparation) into the root canal and push it to the apical stop. Avoid excessive pressure to minimize or prevent extrusion beyond the apical foramen.
Step 20:
Cut and remove the coronal portion of the master cone at the root canal orifice. Compact the coronal portion of the cone with an appropriately sized and fitted plugger. Verify with radiographs.
File comparison
SX Orifice Opener
Slider
Shaper
F1
F2
F3
FX
FXL
Size/Tape
SX Orifice Opener
020.003v
Slider
016.002v
Shaper
020.004v
F1
020.007v
F2
025.008v
F3
030.009v
FX
035.012v
FXL
050.010v
Lengths
SX Orifice Opener
19 mm
Slider
21 mm / 25 mm / 31 mm
Shaper
21 mm / 25 mm / 31 mm
F1
21 mm / 25 mm / 31 mm
F2
21 mm / 25 mm / 31 mm
F3
21 mm / 25 mm / 31 mm
FX
21 mm / 25 mm / 31 mm
FXL
21 mm / 25 mm / 31 mm

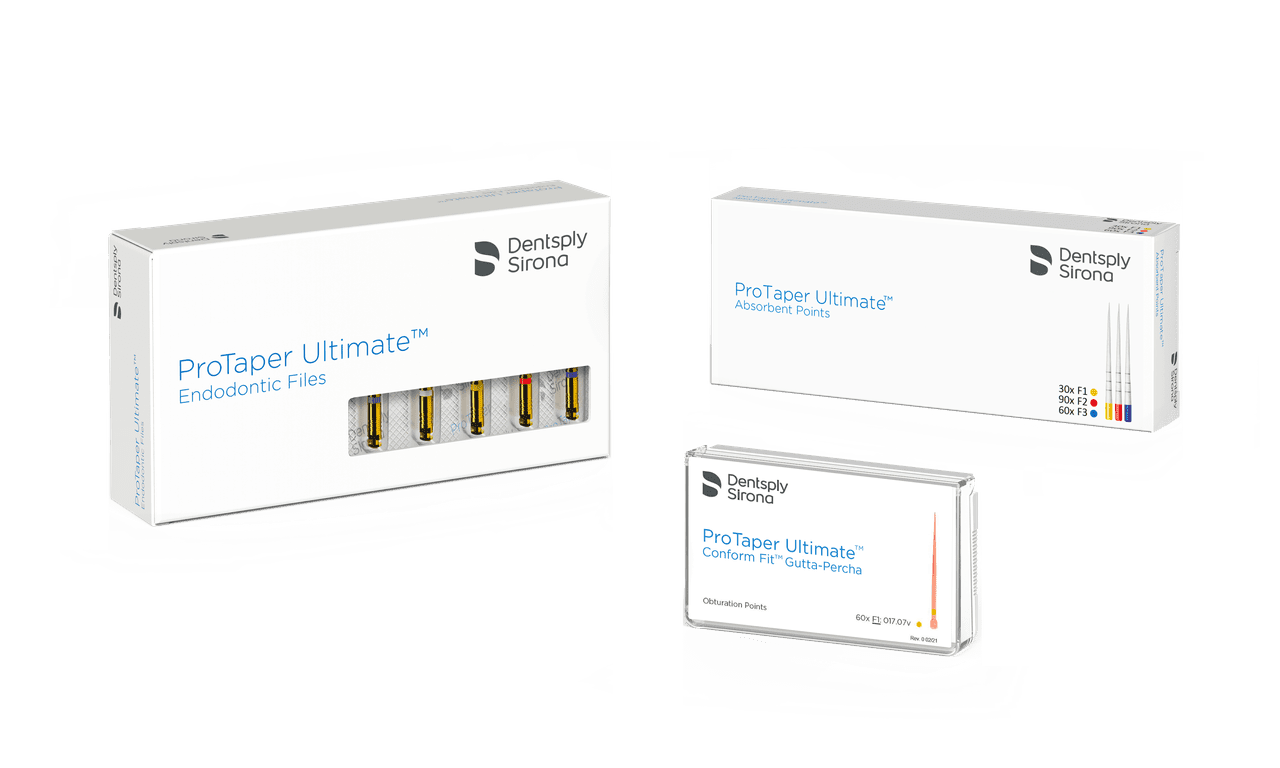

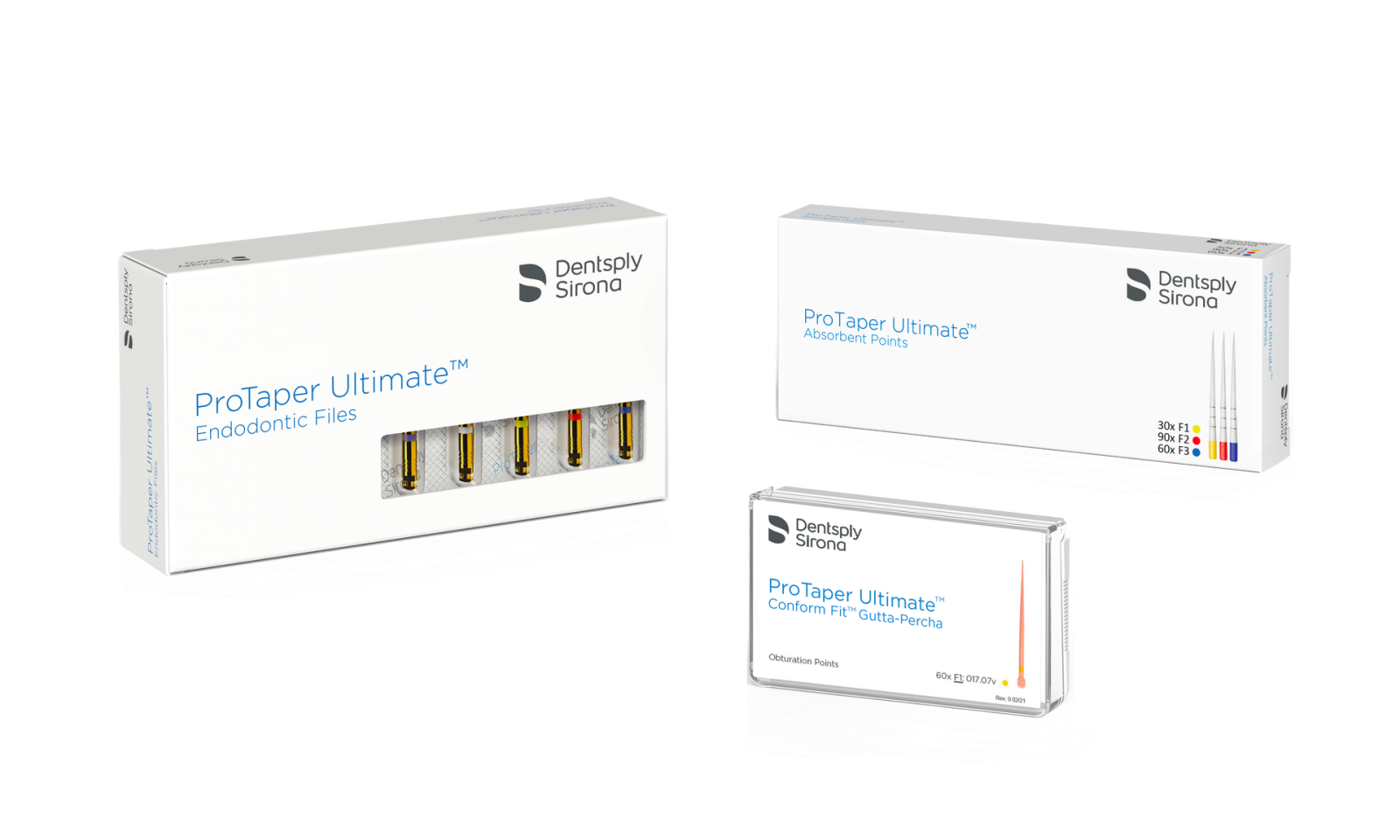

Packaging
SX Orifice Opener
6-pack
Slider
3-pack / 6-pack
Shaper
3-pack / 6-pack
F1
3-pack / 6-pack
F2
3-pack / 6-pack
F3
3-pack / 6-pack
FX
6-pack
FXL
6-pack
Related products
SmartLite Pro EndoActivator

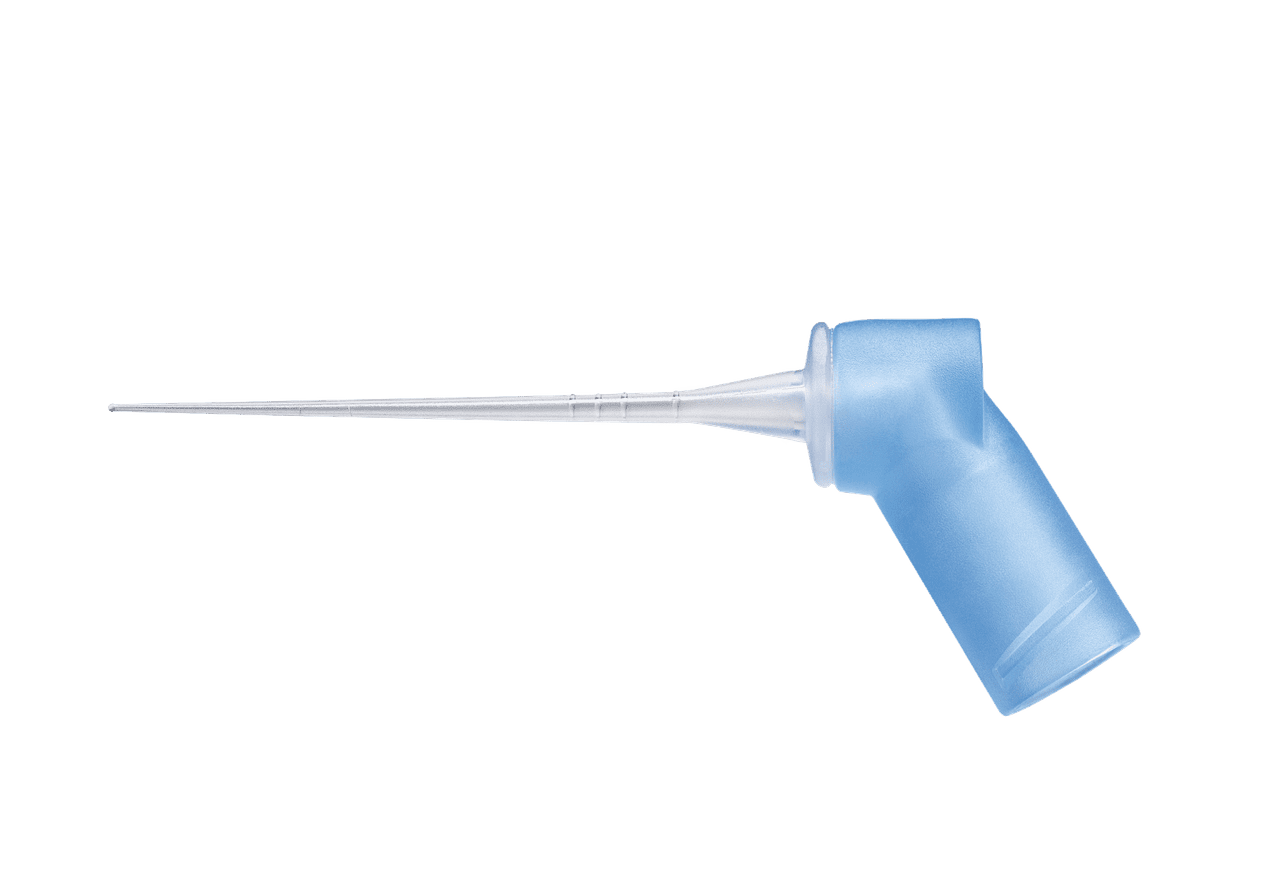

Irrigation Needle
AH Plus
Conform-Fit Gutta-Percha
Frequently asked questions
ProTaper Ultimate components are color-coded. The corresponding color between Gutta-Percha point, paper points and finishers files helps you to easily identify which point to use to dry and fill your canal.
ProTaper Ultimate files vs EdgeTaper Platinum files:
ProTaper Ultimate files are more resistant to unwinding than EdgeTaper Platinum files.5
ProTaper Ultimate files work faster than EdgeTaper Platinum files. Root canal shaping with ProTaper Ultimate is more efficient than with EdgeTaper Platinum files.6
More confidence in single-visit endo
Quality canal shaping is an essential step that allows proper irrigation and correct canal obturation. Whether you are looking for a short reciprocating sequence, rotary files providing deep shape or a solution that helps you safeguarding the natural anatomy, our treatment solutions will suit your goals, supported by our latest generations of motors and apex locators.
Active irrigation promotes 3D cleaning and complete endodontics. Activating irrigant solution produces a surface with more opened dentinal tubules, providing better obturation of lateral and accessory canals.7 Our advanced cleaning tools can support you in achieving deep cleaning and disinfection of the root canals.
Obturation creates the hermetical (fluid-tight) seal that prevents bacteria that resides in the oral cavity from entering into the periarticular tissue. At Dentsply Sirona, we deliver obturation solutions as part of our endodontic treatment workflows, helping deliver healthy, long-term outcomes.
Scientific downloads
ProTaper Ultimate® | Scientific Manual | EN
Scientific and research information
4 MB
FactFile | ProTaper Ultimate
This Fact File is part 1 of a series of Fact Files describing the scientific background of ProTaper Ultimate and focusses on the ProTaper Ultimate file system
748 KB
Product downloads
ProTaper Ultimate® | Brochure | EN
The ultimate ProTaper. Shaper and Finishers, Cleaning and Obturation.
2 MB
ProTaper Ultimate® | Solution Guide | EN
ProTaper Ultimate Sequence and Step-by-Step procedure
393 KB
For instructions for use, safety data sheets, eMDR documents and more, visit our Download Center
Featured case study
Clinical case by Dr. Reid Pullen, USA
1. Internal data on file. For more information contact Consumables-Data-Requests@dentsplysirona.com
2. Martins JNR, et al. Characterization of the file-specific heat-treated ProTaper Ultimate rotary system. Int Endod J. 2023 Apr;56(4):530-542. Epub 2022 Dec 21. the ProTaper Ultimate instruments (except the Slider) showed a higher flexibility than their counterparts of ProTaper Universal and ProTaper Gold systems (table 1, Figure 4 of the publication).
3. ProTaper Ultimate® Scientific Manual. 2025 Dentsply Sirona Inc. ZKD, p.5.
4. Chan, W.S., K. Gulati, and O.A. Peters, Advancing Nitinol: From heat treatment to surface functionalization for nickel-titanium (NiTi) instruments in endodontics. Bioact Mater, 2023. 22: p. 91- 111.
5. Ex vivo study by Prof Ana Arias, Complutense University Madrid, Spain (0% PTUL file unwinding, 34% ETP file unwinding after shaping one root canal (p=0.009)) - DS Supported. Unpublished, for more information contact Consumables-Data-Requests@dentsplysirona.com
6. Ex vivo study by Prof Ana Arias, Complutense University Madrid, Spain (33 s for PTUL file sequence for shaping of one root canal, 52 s for ETP file sequence (p=0.02)) - DS Supported. Unpublished, for more information contact Consumables-Data-Requests@dentsplysirona.com
7. Kanter V, Weldon E, Nair U, et al. A quantitative and qualitative analysis of ultrasonic versus sonic endodontic systems on canal cleanliness and obturation.Oral Surg Oral Med Oral Pathol Oral Radiol Endod. 2011;112(6):809- 813.doi:10.1016/j.tripleo. 2011.06.002.
